Git Fundamentals
Intro
You will learn about and get hands-on experience with the fundamentals of git, and understand the difference between git and github.
What is Git?
Git is a just another command-line tool/program, the same as mkdir or python, but a uniquely important one for doing professional software development. Git is the de-facto version control system for source code. Have you ever saved some changes to a file only to realize a few hours later you deleted something you now want to recover? Git is how software developers manage their code changes so that the history of the project is tracked. As a result, we can never completely lose any of our work! Even if we outright delete something, we can always 'rewind' to an earlier point in the project's history to recover it!
We will build up to how we use Git (and Github) step by step, but let's first see a preview of where we are heading:
-

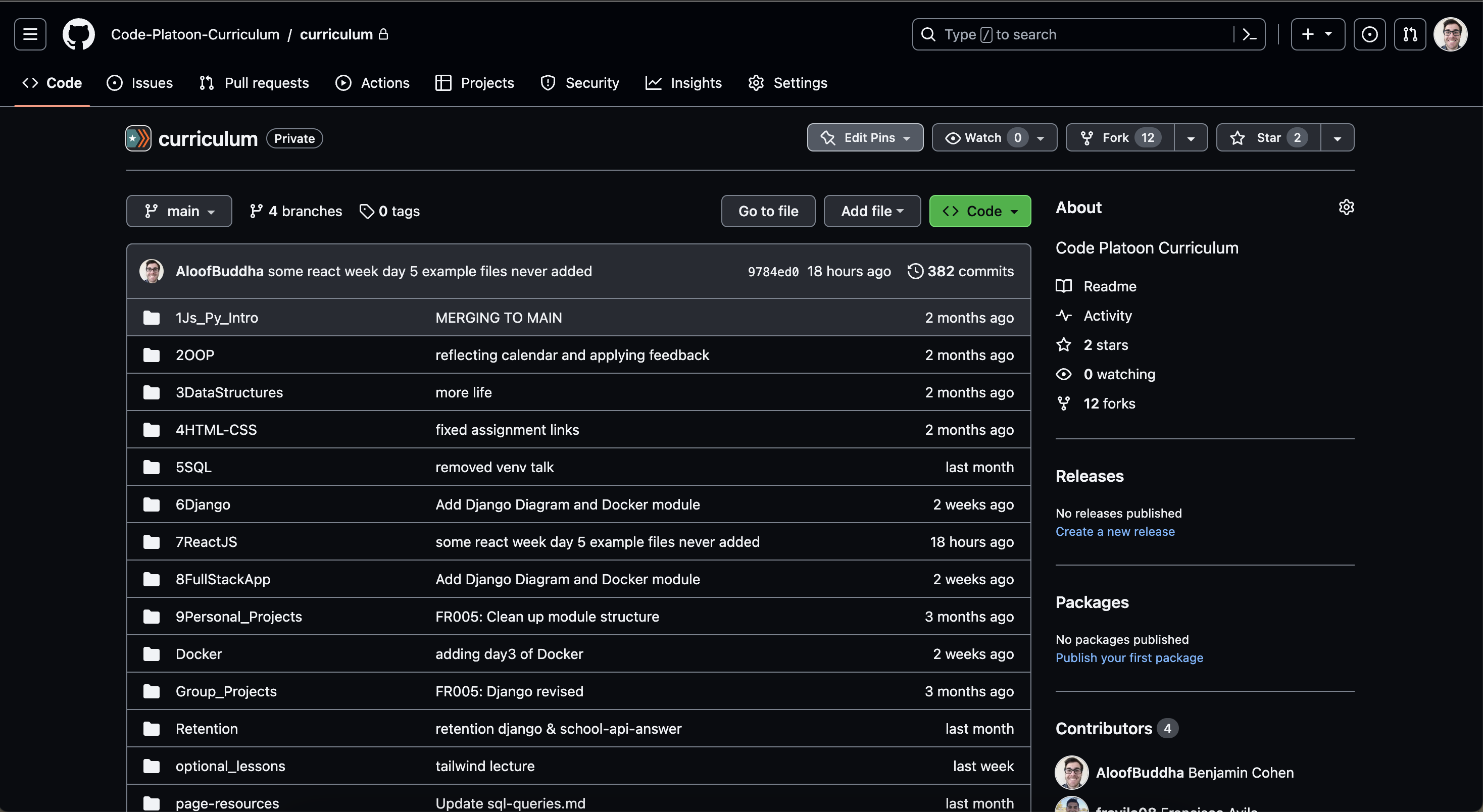

Github Code view - the current state of the project
-
Github Commit History view - a timeline of all past changes marked by a comment
-
Single Commit view - a detailed breakdown of the changes in this commit
Git vs Github
This distinction will become more clear as we continue the lesson, but an important note to begin on - Git is not the same thing as Github!
-
Git is the original invention, and it is designed to manage changes for a local project living on your own personal computer.
-
Github is a modern product/company (now owned by Microsoft) that aims to be the de-facto place to back up your local git repo on the internet. Github let's you sync your local project (and it's history) with a remote computer, so you even if your personal computer is destroyed, a copy of your project still exists in it's entirelty on the internet. This remote location is also useful for collaborating with others, but that's beyond the scope of this lesson.
Part 2 of this lesson will get into Github and how we use it, but for Part 1 we will focus exclusively on git and doing version control locally.
git
Git is a command-line tool like any other, so can be invoked on it's own with git. If that's all you type you will see a very long output explaining all the subcommands git supports, of which there are many. The first one we will explore however is git init, which allows us to turn a regular folder into a git repo.
Creating a git repo
Any folder can be made into a git repo, so to begin, let's make a new empty folder somewhere on our filesystem. Assuming you are in the home directory (~) execute the commands:
mkdir my-first-repo
cd my-first-repo
Ok, we created a file and entered into it, what now? Well, let's see what's in there. Because it's a new, empty folder, it should be empty, right?!
ls -a
If you type ls -a (list, including hidden) you shouldn't see anything (besides . and ..). But we want to make this a git repo, so let's do that before anything else.
git init
git init will make the current folder a git repo. What does this mean? Well, depending on your terminal and shell, you may already see some visual display implying the terminal understands this folder is a git repo. But how does it know? Type ls -a again. You should now see a folder called .git. You don't need to go in there and root around (in general you shouldn't) but this folder is what git itself uses to manage the folder as a git repo. There's ultimately no difference between an ordinary folder and a Git repo besides this file, but we say 'git repo' to imply the folder is being tracked in a way that Git is aware of.
git status

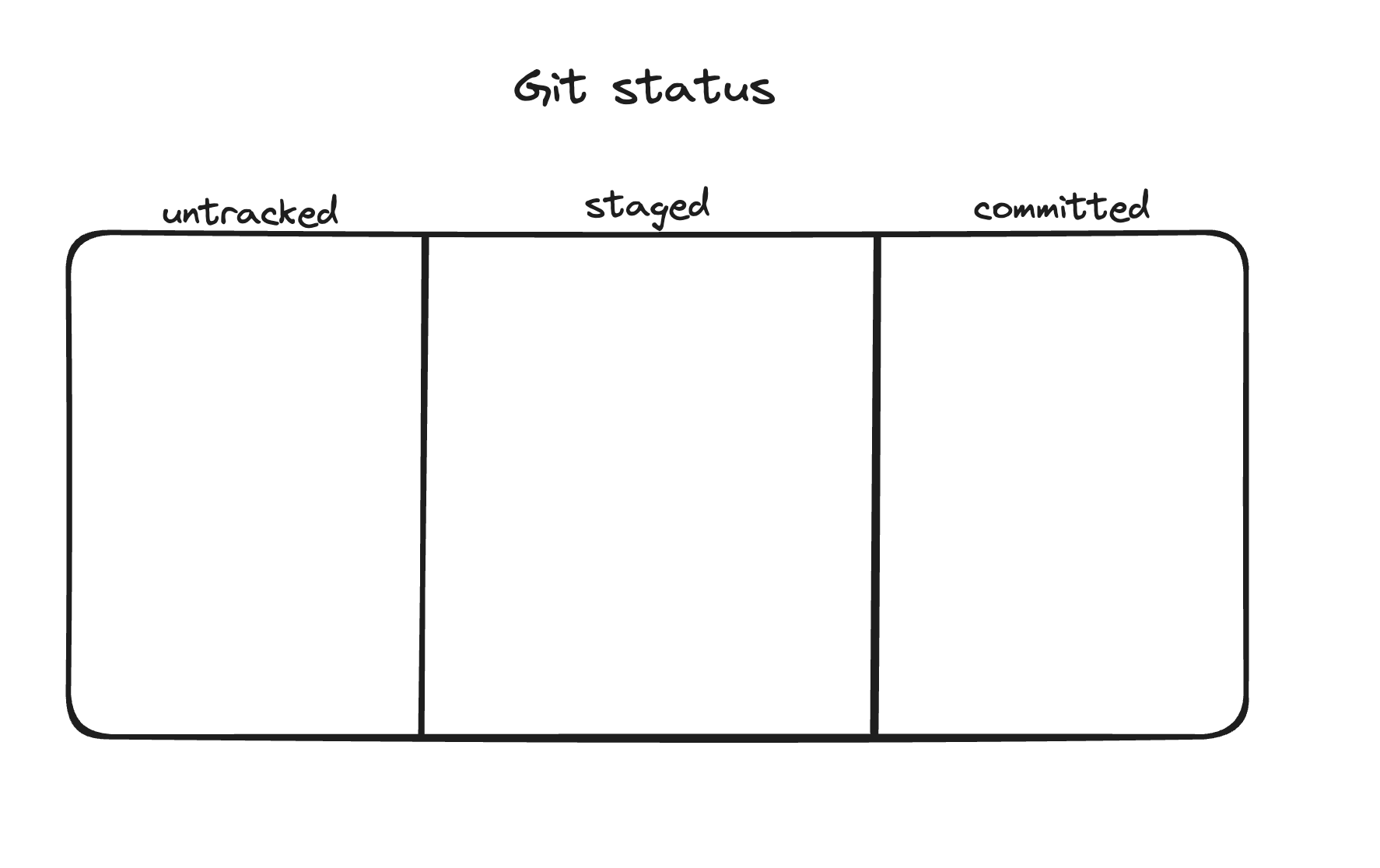

Before doing anything else, type git status. This will tell you the 'status' of the repo, as Git sees it. Because we haven't done anything yet you should see something like:
On branch main
No commits yet
nothing to commit (create/copy files and use "git add" to track)
It's important when starting out to continually type git status between commands, as reading it's output will teach you what git is actually doing. Right now all it's telling us is that we are on a 'branch' called main (more on this later) and that we haven't done anything yet as far as Git is concerned.
So what is this 'commit' business? A 'commit' essentially means a set of changes that git is aware of. But before we can do this, we need to add some files.
git add
We want to add files to our repo, so first let's create some files!
code example.txt
code example.py
code example.js
Open these files with code, fill in the contents of each file with something basic, then save. For example:
- example.txt
hello world
- example.py
print('hello')
- example.js
console.log("hello");
This is just to have some content for git to keep track of. Ultimately git doesn't care what kind of file it is or what the contents are, all it cares about is that there are now new files to track. If you saved these files you should now be able to type ls and see them within your folder.
Now type git status again. You should see something like:
...
Untracked files:
(use "git add <file>..." to include in what will be committed)
example.js
example.py
example.txt
...
These files exist, but Git doesn't care about them yet - i.e. they are untracked. This brings us to our first category of 'status' for a file - untracked.
We want to track these files, so let's update the status of these new files with git add.
git add example.js
git status
Changes to be committed:
(use "git rm --cached <file>..." to unstage)
new file: example.js
Untracked files:
(use "git add <file>..." to include in what will be committed)
example.txt
example.py

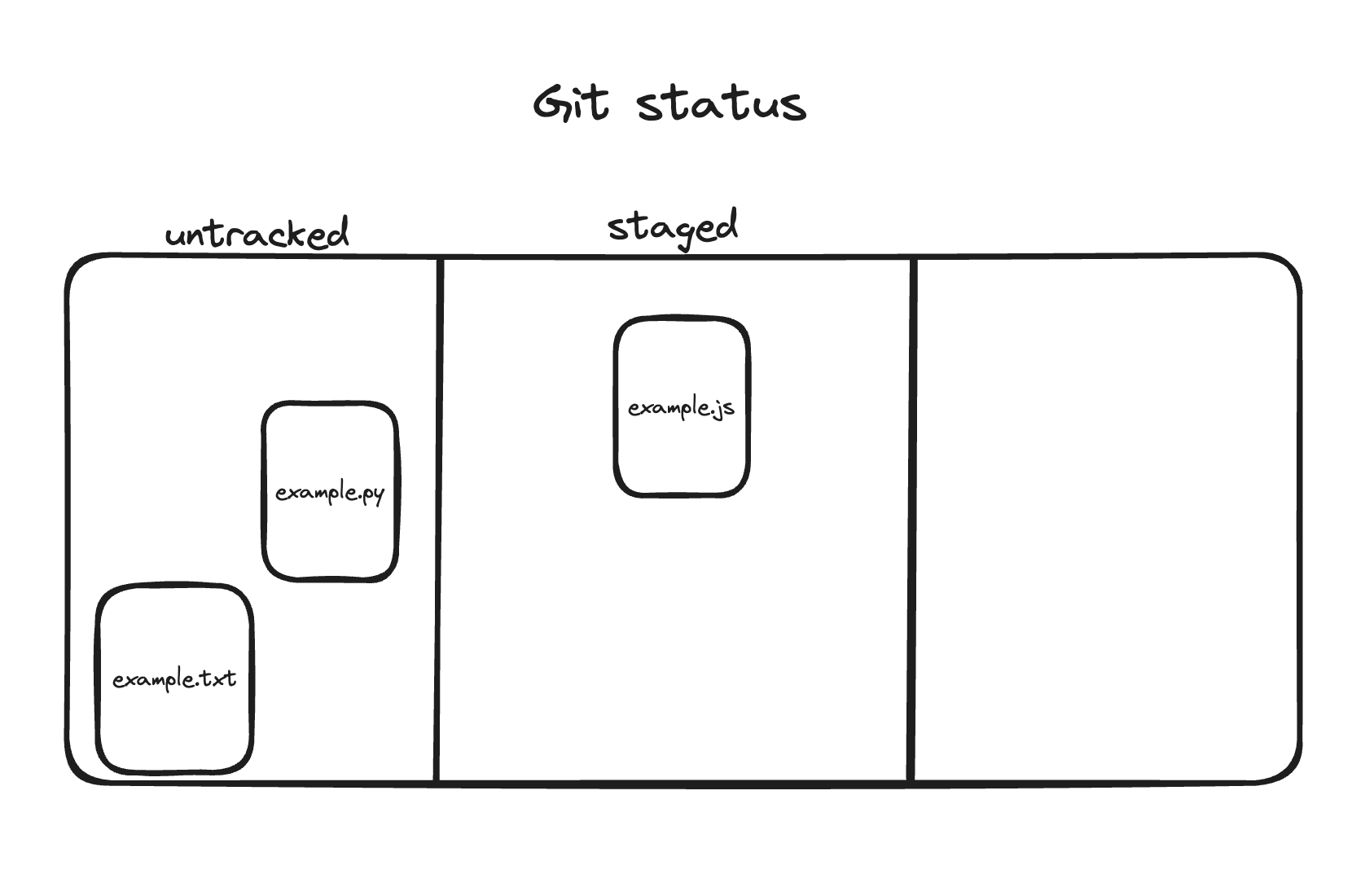

Now we are tracking a single file (changes to be committed). In Git terminology we say this file is 'staged'. Our internal git repo looks something like the below now:
We could continue adding one file at a time with git add example.txt, git add example.py etc, but this is often more specific than you need. If you want to add all the currently untracked files to git with one command, type
git add .
Remember that . represents the current folder, so this is like telling Git to add the entirely of the current folder, including everything inside.
Now type git status again:
...

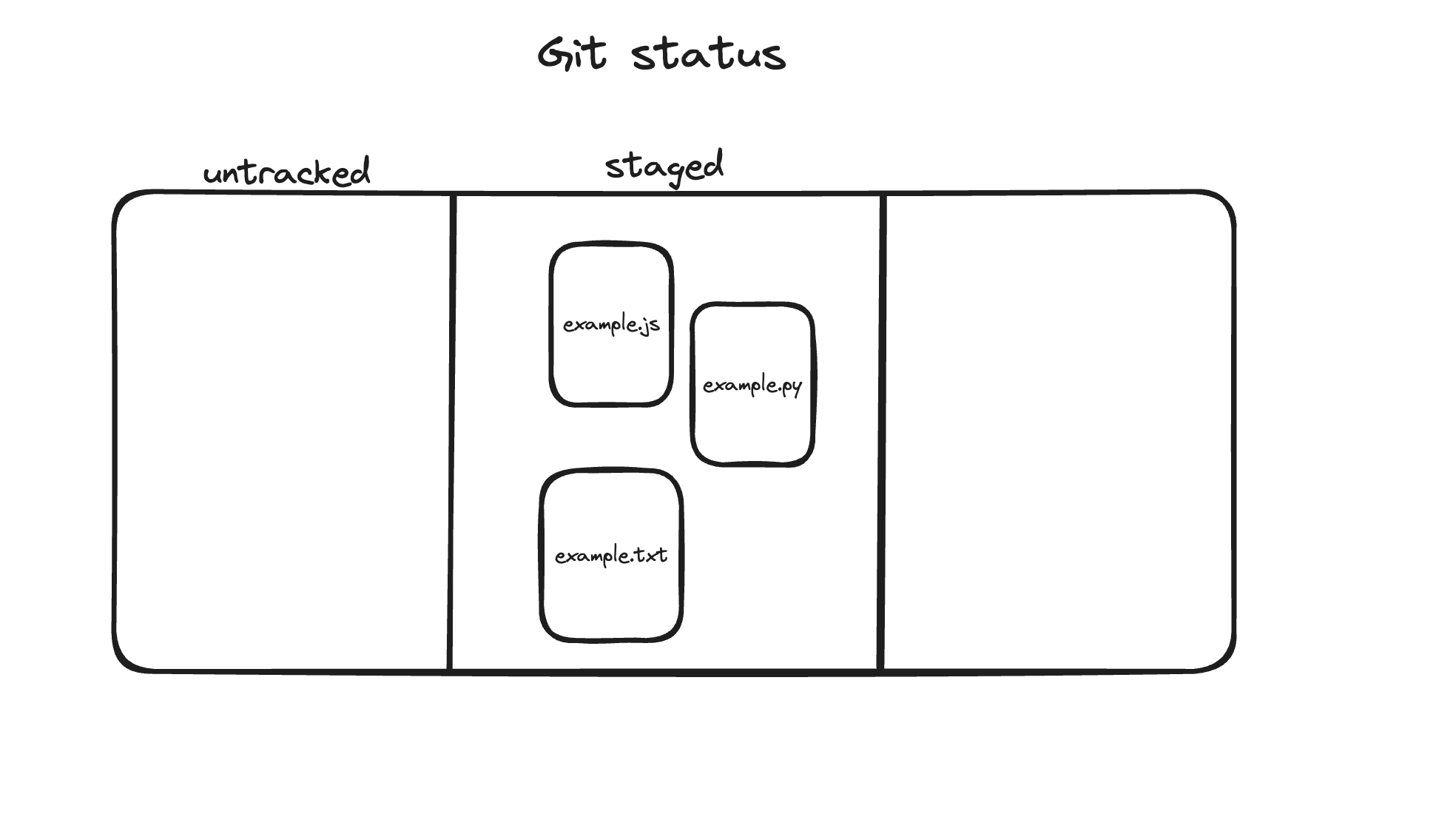

Changes to be committed:
(use "git rm --cached <file>..." to unstage)
new file: example.js
new file: example.py
new file: example.txt
...
Ok, git knows about all of our changes, they are staged, i.e. 'ready to commit', so let's move on to the next step - committing!
git commit
A 'commit' represents a unit of work in git. Once some files are 'staged' (added) for commit, we can then commit them. Try typing git commit now. If you did the setup in installfest correctly, it should open VSCode with some pre-populated commit message, telling you to add a comment. This is one approach, but it is generally overkill. If you close this file without adding any comment, the commit will be aborted.
The easier/more common way is to commit and write the message all in a single command like below:
git commit -m 'my first commit'
This will create a new commit with the provided comment directly in the cli. Some message is always required so this is the simplest way to add that message.

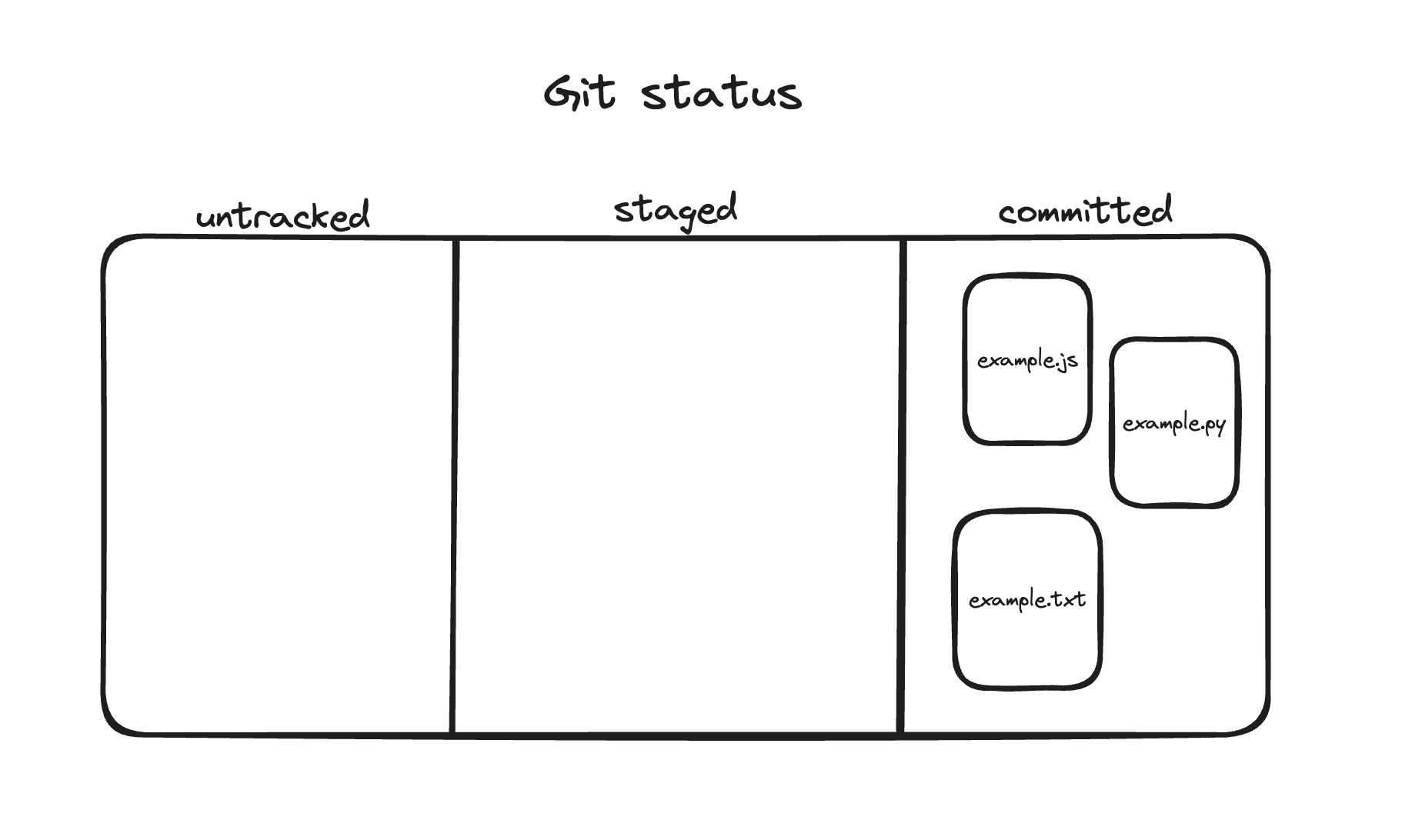

We have now comitted our work, the final stage:
Now type git status once again. It should show something like:
On branch main
nothing to commit, working tree clean
Nothing to commit?! What happened to the work we just committed? git status is saying there's nothing to commit because, once committed, changes are officially within the project, so it's as if we are back to the original status of:
Our work is still there, but it's already been 'committed' and git status is only reporting on new changes, of which there are none yet.
If we want to see our existing commits type git log. This will output your 'commit history'. It should look like:
commit 1dcf85ba9c295be3938152711715cfb72925d76b (HEAD -> main)
Author: Benjamin Cohen <benjamin@codeplatoon.org>
Date: Mon May 22 11:42:33 2023 -0600
my first commit
Like other cli programs,
gitcommands often can take flags. One popolar one forgit logisgit log --onelinewhich removes extraneous information and only shows the commit hash (the long number representing that commmits id) and the message
We can continue making changes from here and commit them so let's do that. As a mini-assignment, let's:
- create a new file or change an existing one
- use
git addto stage that change - use
git commit -m 'my second commit'to create a new commit, making that change official - use
git statusandgit logto report on the current status of our repo and it's history
Branching
What we have learnt so far allows us to track changes to a repo, but there's only one 'official' version of the repo. This 'version' is called a branch in Git, and the default one is called main. We can think of our git repo's history as looking something like the below:

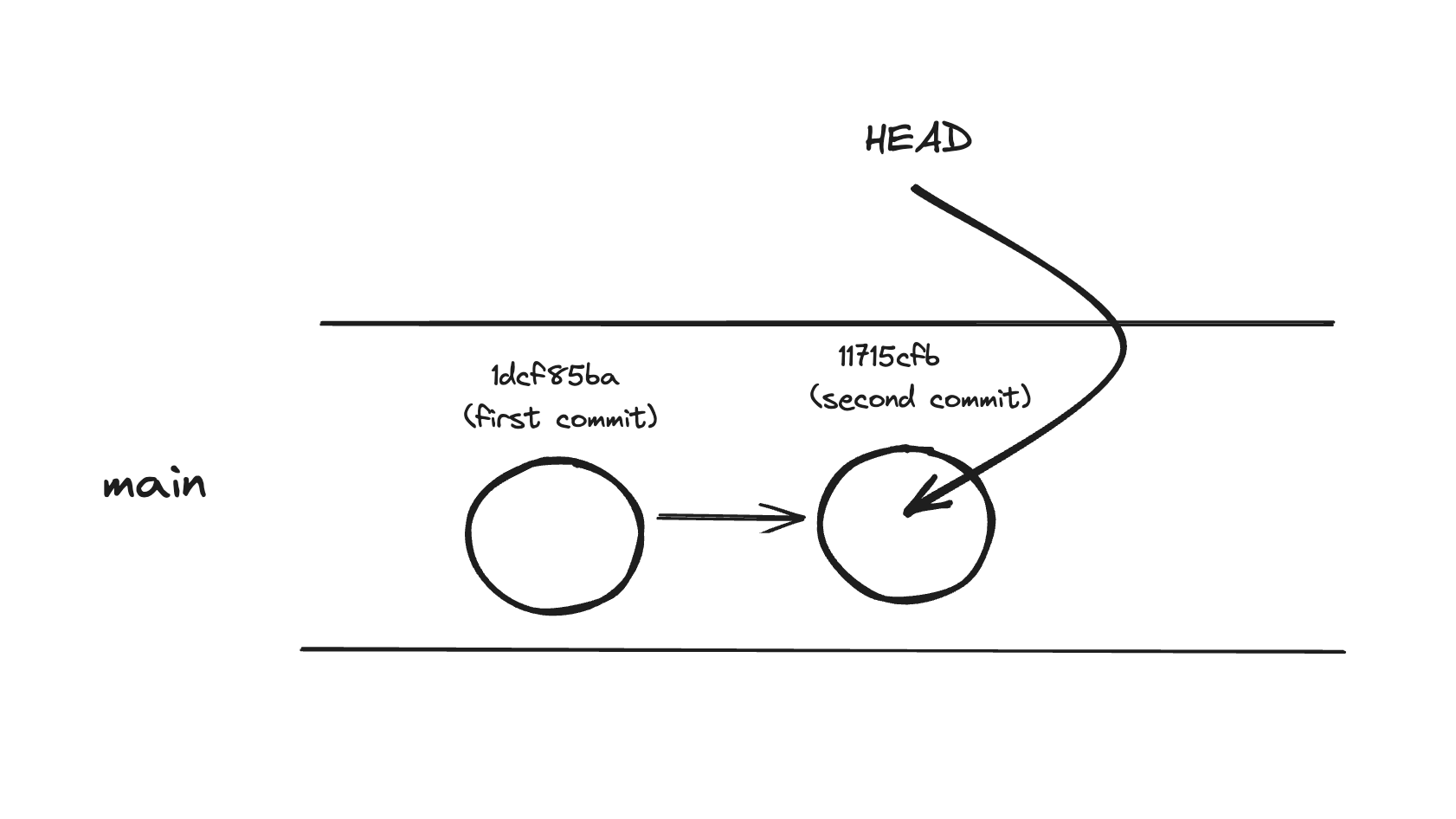

We are on branch main (the default branch you start with), and our commits are connected to each other in the order they were commited by arrows. There's also this keyword HEAD which represents the commit we are currently looking at, which is the latest one on main. What I drew is a visual representation of what Git is representing when you type git log.
Now what consider the situation where we want to add a new feature to our project, but we won't be sure until it's done if we really want to add it into the project for real. main represents the 'true' version of the project in some sense, so if we do our work there we might break things for as long as our feature is a work in progress. The solution is to create a new branch to work on. A branch will branch off of main, keeping all the work we have already done in main but let's us work in an environment that is seperate where our work in progress can be managed seperately from the main version of the project.
Let's see this idea of branching in action now. First, let's create this new branch with git checkout -b:
git checkout -b my-feature
This command will create a new branch called my-feature, which will begin with the contents of the current branch, main. The main subcommand is called git checkout because, after we create the branch we 'enter' it, or 'check it out'.
This new branch isn't official until it's first commit however, so let's make a small change, add it, then make a commit.
- example.py
print('goodbye moon')
# (make some changes)
git add .
git commit -m 'my first commit on my-feature'

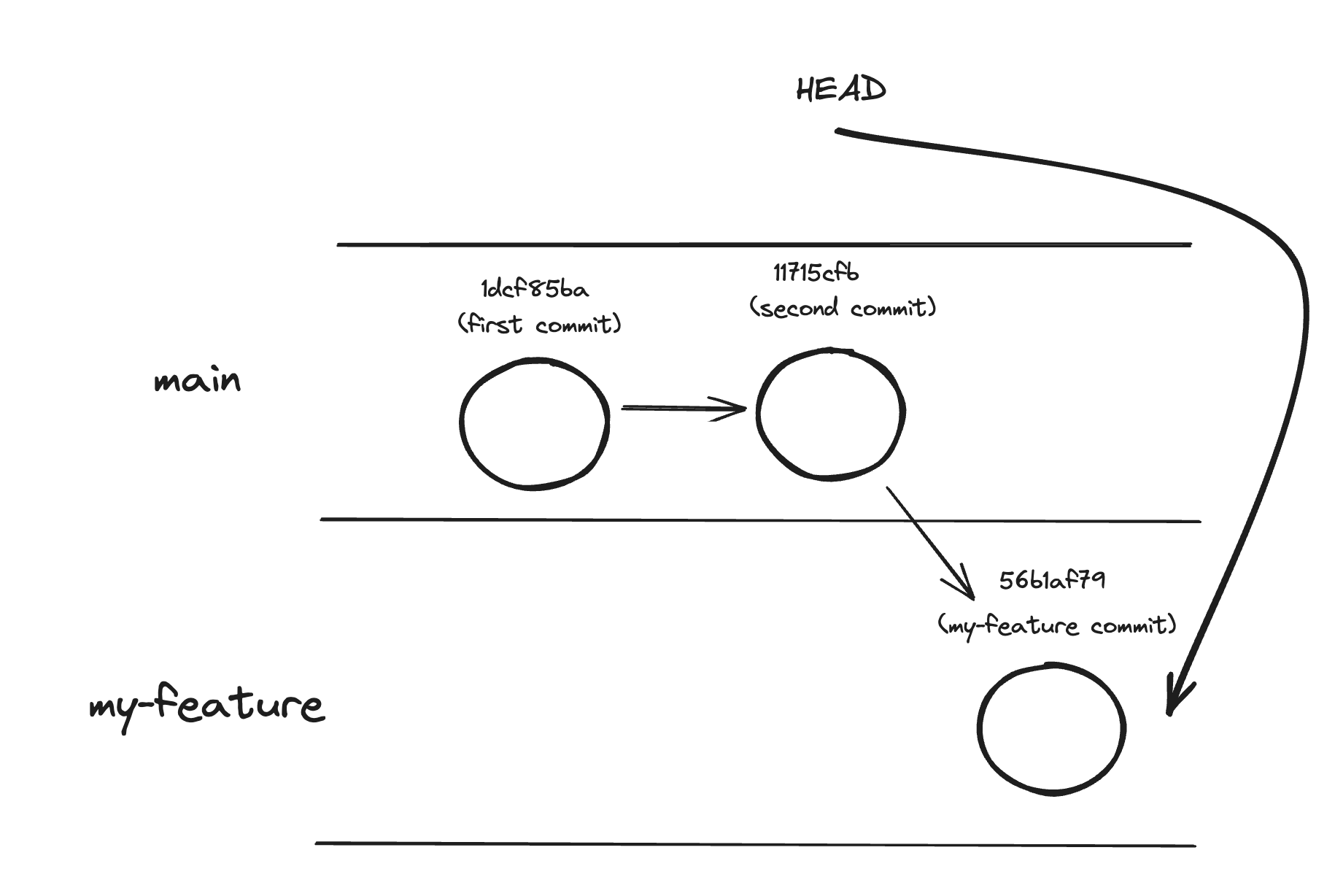

Now our repo's entire history looks like:
Some things to notice:
- the 'base' of our latest commit is the last commit from
main - our latest commit is in a new lane (branch) called
my-feature HEADpoints to this latest commit, as we are on branchmy-feature
Before moving on, use git log to confirm the commit history is what you expect it to be.
Checkout
Ok, we made a change on a new branch, what if we wanted to see what main looks like right now? We can do that with git checkout. But first, let's type git branch:
main
* my-feature
git branch will tell you the names of all of the currently existing branches, with a * next to the one that is currently checked out. Now type git checkout main. You will notice any changes made to my-feature are no longer represented! This can be confirmed using git log. You haven't lost them - they just only exist on the my-feature branch.
Merging
In a real project, that feature branch would likely have more than one commit, maybe several hundred would be created as work on that feature progresses. But what do we do if we like the changes from my-feature and we want to integrate them into our main branch? We can do this with the command git merge. First, make sure you are on the main branch, then type:
git merge my-feature

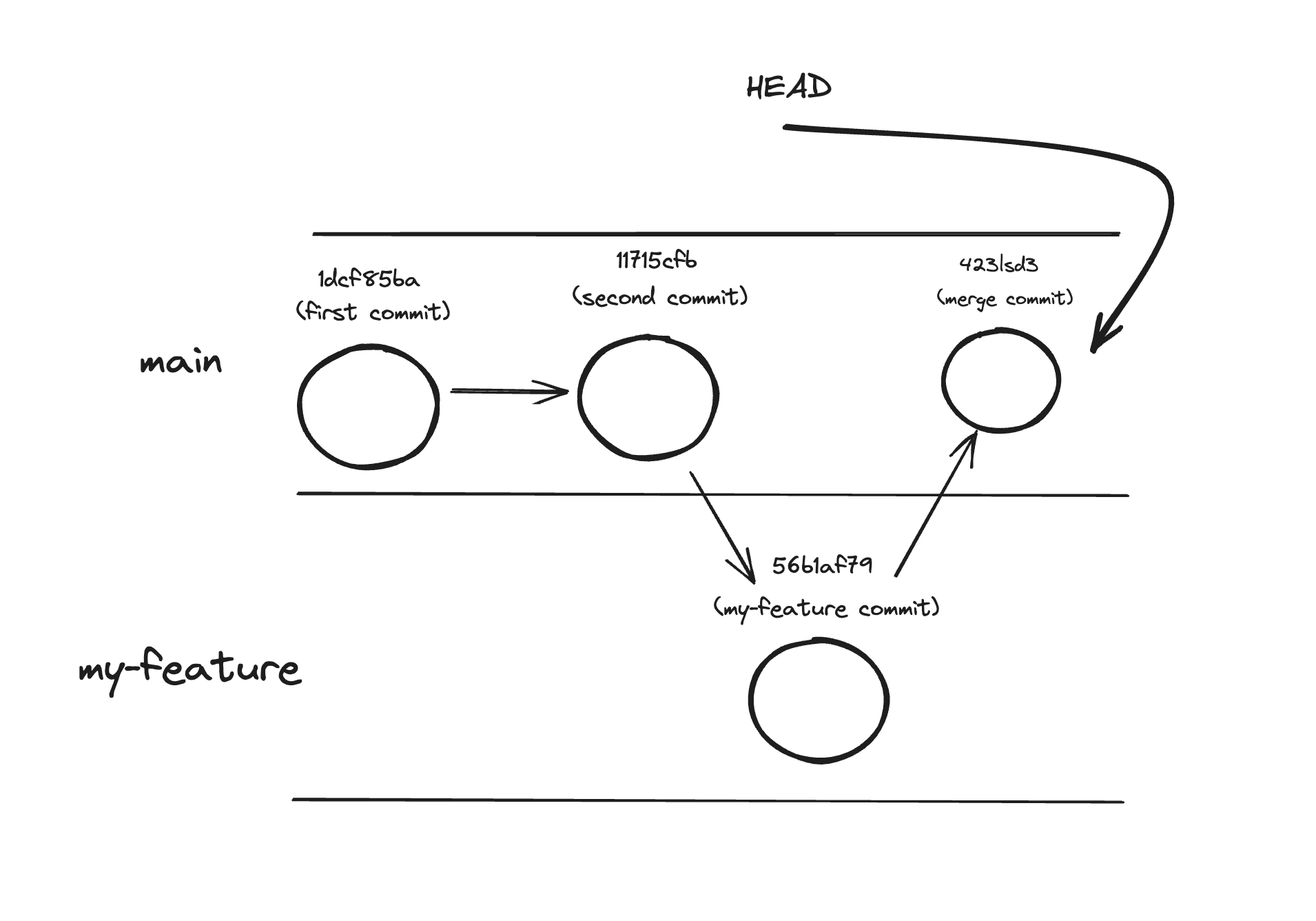

You will see a message indicating that the changes from my-feature have now been integrated into main. Our repo now looks something like:
Conclusion
Everything we have covered so far is about how to work with a Git repo locally, but you have probably noticed using the cli can be a little cumbersome as a means of visualizing your commit history and branches. In part 2 we will cover syncing with Github and how to use Github to see a lot of the same info using the much more usable interface of a website.
git is a powerful tool, and commits and branching allow us to safely experiment with different variations of our code without losing work. However like many complex tools it takes time and practice to master. You will continue to use git fundamentals daily throughout this course - practice, be patient, and don't hesitate to ask questions about git and you will be on your way! 🚀
Cheatsheet
Some important commands we learnt so far include:
-
git init- make a new local repo -
git status- get feedback on the current state of your repo -
git add <filename>- add a specific file to git for staging -
git add .- add files to git for staging -
git commit -m '<message>'- commit staged files as a discrete unit of 'work' that git tracks -
git log- print the commit history -
git checkout -b <branchname>- create a new branch with the given name -
git checkout <branchname>- switch to the branch with the given name -
git merge <branchname>- merge the latest changes from the branch with the given name into the branch you are currently on
Advice
Some good general git advice:
-
Be careful when using a visual git tool, as it is running commands behind the scenes, many of which you may not understand. To be safe, don't use a visual git tool until you feel pretty confortable with git.
-
Never use a git command you copied off the internet and don't fully understand. You will only run into even greater complications. If you encounter a new git command on stack overflow, do your due dilligence and read about it first, and ideally seek a TA's help before proceeding.
-
Run
git statusbetween every other command you run. It will tell you what the state of the system is and is the main way you get familiar with the concepts git uses. -
Ask for help sooner rather than later with git. With git in particular, it's easy to paint yourself into a corner and make a small problem worse w/out realizing it.
