Understanding Retrieval-Based Chatbots

---

Introduction

In this lecture you'll learn what a retrieval-based chatbot is and how it differs from a rule-based chatbot. From there we will move on into breaking down the functionality of understanding intent and how limited this process is when working within a Rule Based Chatbot. We will learn how to empower our chatbot by converting text into numbers using Bag-of-Words, TF-IDF, and embeddings which will allow us to turn chatbots from rule base to retrieval base.

---

What Is a Retrieval-Based Chatbot?

The Evolution from Rule-Based to Retrieval-Based Systems

A rule-based chatbot relies on strict logic — it follows predefined rules written by a human developer.
You might use if/else statements, regex patterns, or decision trees to decide which response to give.

For example:

import re

def rule_based_chatbot(text):
    if re.search(r"\bhello\b", text, re.I):
        return "Hello there!"
    elif re.search(r"\bbye\b", text, re.I):
        return "Goodbye!"
    else:
        return "I'm not sure what you mean."

This approach works well for small, predictable interactions (like “hi”, “bye”, or “thank you”), but it quickly becomes rigid and unscalable. As soon as you want your chatbot to understand dozens of ways people might say the same thing, your rules explode.

---

Retrieval-Based Chatbots: The Next Step

A retrieval-based chatbot, on the other hand, doesn’t rely on exact word matches or predefined branches. Instead, it retrieves the most relevant response from a set of known examples based on similarity.

Here’s the big idea:

Instead of saying “if message == 'hello'”, we say “which of my known messages is this most similar to?”

That small shift — from rule checking to similarity checking — makes all the difference.

You can think of a retrieval chatbot as a smart librarian:

• A user asks a question (“Hey, what’s a good sci-fi book?”)
• The librarian doesn’t memorize every question — instead, they find the most similar question in their library index.
• Then they return the prewritten answer that matches that intent.

---

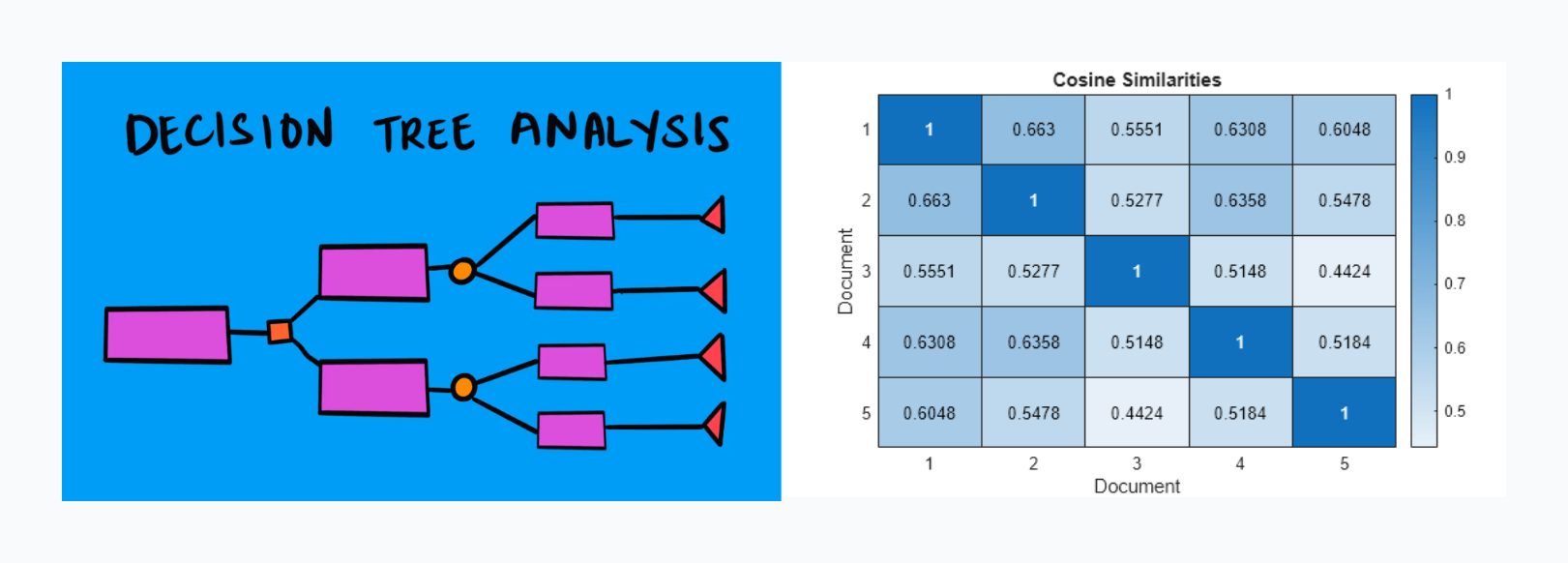

Visual Comparison

Feature	Rule-Based Chatbot	Retrieval-Based Chatbot
Logic Type	Pattern Matching (if/else, regex)	Similarity Matching (vector space)
Scalability	Limited – rules grow exponentially	Scalable – add data, not rules
Response Flexibility	Deterministic	Based on closest match
Best Use Case	Small FAQs, command bots	Conversational agents, larger datasets

---

Understanding Intent Matching

An intent is the goal or meaning behind a user’s message. For example, “hello”, “hey there”, and “good morning” all express the same intent: greeting.

Example Intents and Responses

intents = {
    "greeting": ["hello", "hi there", "hey", "good morning", "good evening"],
    "goodbye": ["bye", "see you", "good night"],
    "thanks": ["thanks", "thank you", "much appreciated"],
    "age": ["how old are you", "what is your age"],
    "name": ["what is your name", "who are you"]
}

responses = {
    "greeting": "Hello! How can I help you today?",
    "goodbye": "Goodbye! Have a great day!",
    "thanks": "You're very welcome!",
    "age": "I don't have an age, but I'm constantly learning!",
    "name": "I'm your friendly retrieval-based chatbot."
}

---

Student Exercise: Regex-Based Intent Matching

Before we move into similarity-based retrieval, let’s see how we can detect intents using regex loops. This code loops through every pattern under each intent and returns the matched intent tag.

import re

def match_intent(user_input, intents):
    for intent, patterns in intents.items():
        for pattern in patterns:
            if re.search(rf"\b{pattern}\b", user_input, re.I):
                return intent
    return None

# Test it out
user_input = "hey there"
intent = match_intent(user_input, intents)
print("Detected Intent:", intent)

This function can identify intents dynamically — but it still depends on manual pattern coverage. As soon as users say something new (“yo!” or “good day!”), this approach breaks.

That’s where vectorization comes in.

---

From Text to Numbers – Vectorization

Chatbots don’t understand text directly — they understand numbers. Vectorization is the process of converting text into numerical form so we can compare meanings mathematically.

We’ll explore three common approaches:

---

Bag of Words (BoW)

Concept: Imagine each unique word in your dataset as a column in a big spreadsheet. Each sentence marks a 1 for words it contains, and 0 for words it doesn’t.

Sentence	hello	how	are	you	bye
"hello"	1	0	0	0	0
"how are you"	0	1	1	1	0
"bye"	0	0	0	0	1

Python Demo:

from sklearn.feature_extraction.text import CountVectorizer

corpus = ["hello", "how are you", "bye"]
vectorizer = CountVectorizer()
X = vectorizer.fit_transform(corpus)

print(vectorizer.get_feature_names_out())
print(X.toarray())

Strengths:

• Simple and fast
• Works well for short, structured text

Weaknesses:

• Doesn’t account for word importance
• Doesn’t understand context or meaning

---

TF-IDF (Term Frequency – Inverse Document Frequency)

Concept: TF-IDF improves upon Bag of Words by considering how common or rare a word is. Common words like “the” or “is” get lower weight, while rare, meaningful words get higher weight.

Analogy: Think of TF-IDF as a highlighter that fades common words and brightens the important ones.

Python Demo:

from sklearn.feature_extraction.text import TfidfVectorizer

corpus = ["hello there", "how are you", "bye bye"]
vectorizer = TfidfVectorizer()
X = vectorizer.fit_transform(corpus)

print(vectorizer.get_feature_names_out())
print(X.toarray())

Strengths:

• Prioritizes informative words
• Good for medium-sized datasets

Weaknesses:

• Still based on individual words
• Doesn’t capture meaning or word relationships

---

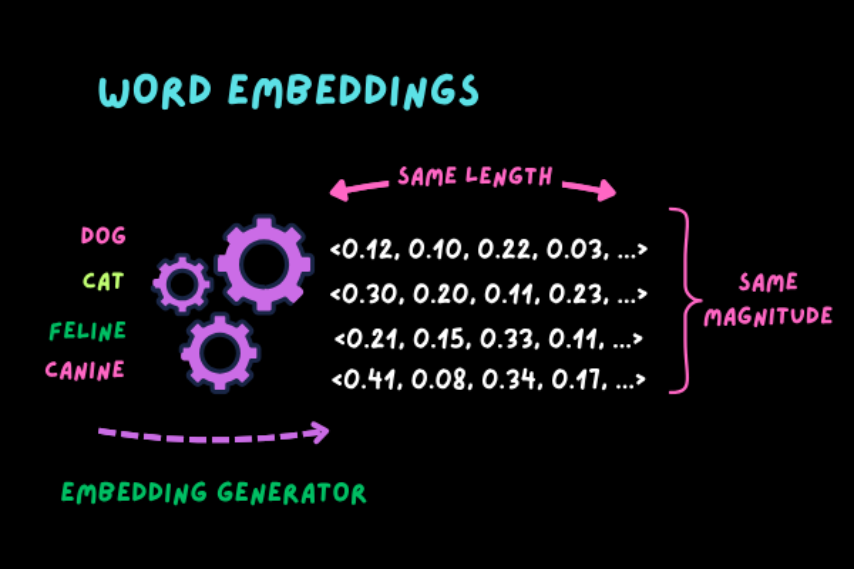

Word Embeddings

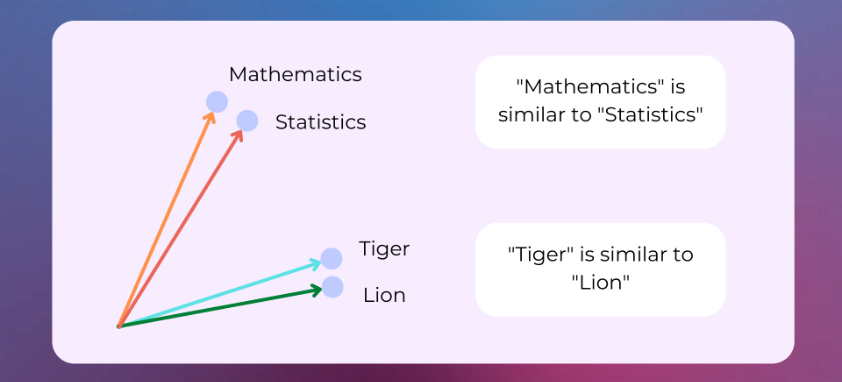

Concept: Embeddings take words and represent them as dense vectors that capture meaning and relationships. For example, in a well-trained embedding space:

vector(“king”) – vector(“man”) + vector(“woman”) ≈ vector(“queen”)

This means embeddings understand relationships and context in a way BoW and TF-IDF can’t.

In Practice: You can use pre-trained models like:

• spaCy
• Gensim Word2Vec
• Sentence Transformers

Strengths:

• Captures context and meaning
• Works great for semantic similarity

Weaknesses:

• Requires large data or pre-trained models
• Computationally heavier

---

When to Use Each Method

Method	Best For	Weakness
Bag of Words	Simple prototypes, structured text	Ignores meaning
TF-IDF	Balanced small-to-medium projects	Limited semantic understanding
Embeddings	Conversational or semantic tasks	Requires model training or loading

---

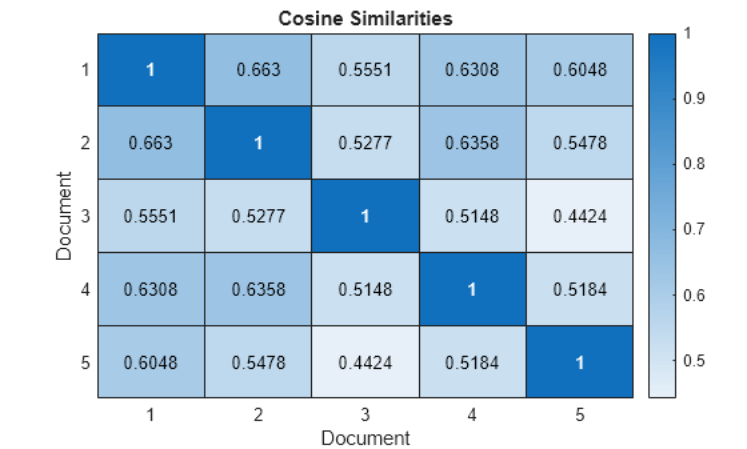

Measuring Similarity – Cosine Similarity

Now that we can represent text as vectors, we need a way to measure how close two pieces of text are.

That’s where cosine similarity comes in.

---

Conceptual Understanding

Cosine similarity measures the angle between two vectors in space. It doesn’t care about their length — just how much they point in the same direction.

Analogy: Imagine two arrows on a dartboard:

• If they point in the same direction → angle = 0°, similarity = 1.0
• If they are at right angles → angle = 90°, similarity = 0
• If they point opposite → angle = 180°, similarity = -1.0

---

Python Demo

from sklearn.metrics.pairwise import cosine_similarity
from sklearn.feature_extraction.text import TfidfVectorizer

sentences = ["hello", "hi there", "goodbye"]
vectorizer = TfidfVectorizer()
X = vectorizer.fit_transform(sentences)

sim = cosine_similarity(X[0], X)
print(sim)

This will output a similarity score between "hello" and all other phrases. The higher the score, the more similar the sentences.

---

What Happens Under the Hood (Conceptually)

Cosine similarity uses this relationship:

cos(θ) = (A · B) / (‖A‖ × ‖B‖)

Where:

• A · B is the dot product (how much two vectors overlap)
• ‖A‖ × ‖B‖ is the product of their magnitudes

Intuitive Analogy: If two sentences share many similar words, their arrows (vectors) point in nearly the same direction → high cosine similarity.

---

Why Cosine Similarity Works So Well

• It focuses on direction, not magnitude (so “hello” and “hello hello hello” look similar).
• It’s scale-independent and works perfectly with TF-IDF and embedding vectors.

---

🧾 Summary

In this part, we learned:

• The difference between rule-based and retrieval-based chatbots.
• How intents group similar user messages.
• How to convert text into numbers using Bag of Words, TF-IDF, and embeddings.
• How cosine similarity measures closeness between text inputs.

These tools form the foundation of a retrieval-based chatbot — which we’ll build in Part II, where you’ll combine these ideas into a functioning Python chatbot.
